Author Topic: OC-4 tracks?  (Read 9062 times)
0 Members and 1 Guest are viewing this topic.
GerryL
phpBB Junior Operator
**
Offline Offline

Posts: 2


View Profile
« on: November 07, 2011, 08:12:17 PM »

Hi guys-
My brother dropped off an OC-4 for me to play with.  We're trying to figure out these tracks; the grouser or pad is offset from the chain, meaning not centered on it.  I've never seen a set like this, but then again I haven't looked that closely. There is only 1/2 to 5/8" clearance between the track and some frame parts.


Is this an original track or did someone cut them down?  They are pretty well worn, and I'm watching for a better set.  I found an 8" wide set from an OC-3 that I think will work.  In the past I've seen 10" and 12" from an air track drill but they are too wide unless the track frame and sprockets are spaced out.
-Gerry

Logged
oliverchris
phpBB THE Boss
*****
Offline Offline

Gender: Male
Posts: 494


OliverCrawlers.com


View Profile WWW
« Reply #1 on: November 07, 2011, 08:49:21 PM »

My guess is that these were cut down to better fit your machine. Probably used up ten cut-off discs doing it  Wink
Offset tracks were not factory output, I am quite sure.
The grousers have been built-up too.

The 8 in. set from that OC3 will work, but you'll need a few extra pads.
Logged

Specialising in Oliver & Cletrac Crawlers & Parts for HG's, OC-3's & OC-4's from the 30's to the 60's. OC-6 and others from time
1945 Cletrac HG42 + electric snowblade
1952 OC-3-31 sidewalk plow, OC-3-42 + Ware 3-WI (several)
OC-3-42 Heller Universal Trencher
1957 Oliver Super 55, 1958 Oliver 550's Gas/Diesel, 1970's Oliver 1255 FWA
1969 White 2-44 13LL (loader/backhoe)
OC-4 4 cyl. Anderson Dozer, OC-4 Series B 6-way Dozer, OC-46 Series B Loaders
OC-46-A Experimental Crawler Loader
John Schwiebert
phpBB THE Boss
*****
Offline Offline

Gender: Male
Posts: 710


View Profile
« Reply #2 on: November 07, 2011, 09:20:58 PM »

Chris: there were some OC-4 tractors built with just 3 lower rollers like an OC-3
Logged

John Schwiebert
GerryL
phpBB Junior Operator
**
Offline Offline

Posts: 2


View Profile
« Reply #3 on: November 07, 2011, 09:55:16 PM »

Here's a photo.  32 pads I think; does that sound right?

« Last Edit: November 07, 2011, 10:09:32 PM by GerryL » Logged
hotratz
phpBB THE Boss
*****
Offline Offline

Gender: Male
Posts: 528



View Profile
« Reply #4 on: November 08, 2011, 09:18:36 AM »

Yes, "normally" 32 pads on an OC-4  30 on an OC-3
Logged

oliverchris
phpBB THE Boss
*****
Offline Offline

Gender: Male
Posts: 494


OliverCrawlers.com


View Profile WWW
« Reply #5 on: November 08, 2011, 10:14:31 AM »

Tell us more, John.
I actually have an OC4 with OC3 track frames and therefore just three rollers per side, but I just assumed some cheap #@! swapped out the proper tracks frames for spares from an OC3. Everything else is pure OC4.
Logged

Specialising in Oliver & Cletrac Crawlers & Parts for HG's, OC-3's & OC-4's from the 30's to the 60's. OC-6 and others from time
1945 Cletrac HG42 + electric snowblade
1952 OC-3-31 sidewalk plow, OC-3-42 + Ware 3-WI (several)
OC-3-42 Heller Universal Trencher
1957 Oliver Super 55, 1958 Oliver 550's Gas/Diesel, 1970's Oliver 1255 FWA
1969 White 2-44 13LL (loader/backhoe)
OC-4 4 cyl. Anderson Dozer, OC-4 Series B 6-way Dozer, OC-46 Series B Loaders
OC-46-A Experimental Crawler Loader
Blake Malkamaki
Administrator
phpBB THE Boss
*****
Offline Offline

Gender: Male
Posts: 1733



View Profile WWW
« Reply #6 on: November 08, 2011, 08:17:12 PM »

We have a Cletrac around with one side cut off the tracks. I think it's a model AD. Not sure whether those tracks would be factory or not. I know one of the ADs has B tracks on it, but I don't think it is the one that's cut.
Logged

My gramps Howard van Driest was Experimental Engineer at Cletrac and Oliver Corporation. After the plant closed, he and my uncle started an excavating business, initially using Cletrac and Oliver Crawler tractors. Please help Support This Site and give your business exposure by buying a business card sized ad.
Doug424
phpBB Jobsite Boss
*****
Offline Offline

Posts: 177


View Profile
« Reply #7 on: November 08, 2011, 09:39:42 PM »

I've never seen any Oliver or Cletracs with offset track pads. I have however seen Case crawlers that had them that way from the factory. In reference to the OC-4's with 3 roller track frames, I do have literature that states they had 3 or 4 (optional) rollers per side. That must have been very early production as I have never seen a 3 roller OC-4.
Logged

HG's (several) OC-3's, (many), OC-4, OC-46,
OC-96, OC-12, OC-126, Cletrac AD2
Cletrac DD, Cletrag AG-6
Many other Crawlers, Tons of junk
logdog1200
phpBB Junior Operator
**
Offline Offline

Gender: Male
Posts: 3


View Profile
« Reply #8 on: November 10, 2011, 01:49:49 PM »

I think I might be able to help. I am in Washington and trying to post an OC 3 for my uncle. it has good tracks and finals with a model S Carco winch. I haven't been able to get anything to post so I thought I'd come ona and see if someone might be able to help or just pass the word along. I am not a computer expert.  If you might be interested please contact me I do have some pictures of it.
Logged

Logdog
oliverchris
phpBB THE Boss
*****
Offline Offline

Gender: Male
Posts: 494


OliverCrawlers.com


View Profile WWW
« Reply #9 on: November 16, 2011, 09:38:56 AM »

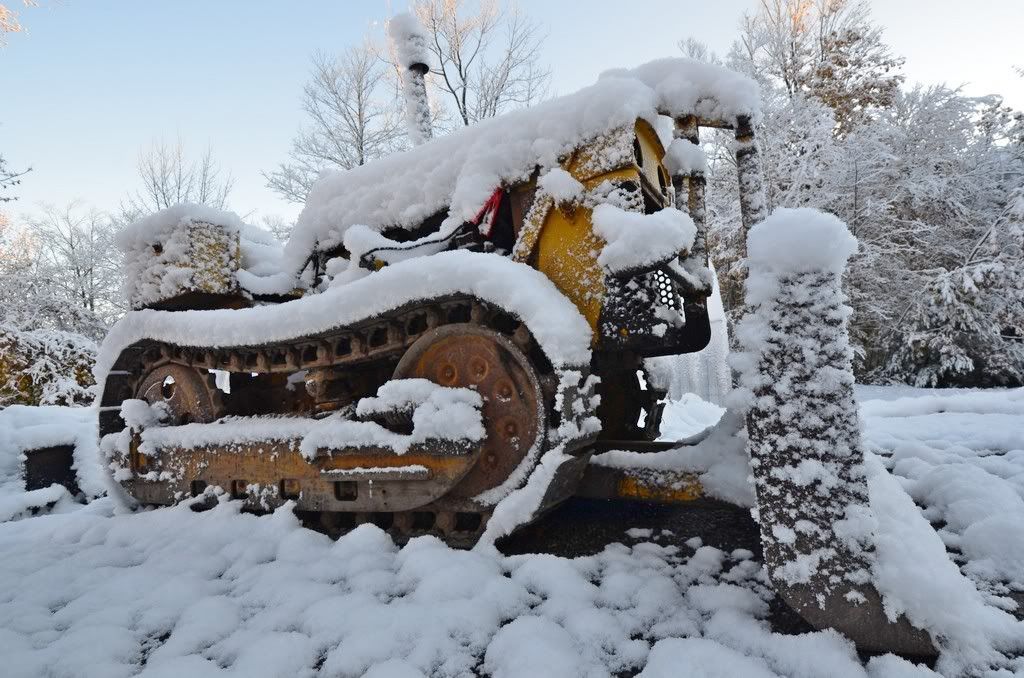

Here's mine. Happy to know it might be factory issue  Smiley
Logged

Specialising in Oliver & Cletrac Crawlers & Parts for HG's, OC-3's & OC-4's from the 30's to the 60's. OC-6 and others from time
1945 Cletrac HG42 + electric snowblade
1952 OC-3-31 sidewalk plow, OC-3-42 + Ware 3-WI (several)
OC-3-42 Heller Universal Trencher
1957 Oliver Super 55, 1958 Oliver 550's Gas/Diesel, 1970's Oliver 1255 FWA
1969 White 2-44 13LL (loader/backhoe)
OC-4 4 cyl. Anderson Dozer, OC-4 Series B 6-way Dozer, OC-46 Series B Loaders
OC-46-A Experimental Crawler Loader
da-choppa
phpBB Master Operator
****
Offline Offline

Posts: 49


View Profile
« Reply #10 on: December 09, 2011, 08:14:44 AM »

I had photos as well of a OC4 that someone sent me, it too had the 3 rooler rails, and these same offset tracks/pads. I think it was becuse it was a 31 gauge ? unit Really narrow machine

I think I posted on this on one of the forums too at the time.

Wished I bought that machine, looking back..
